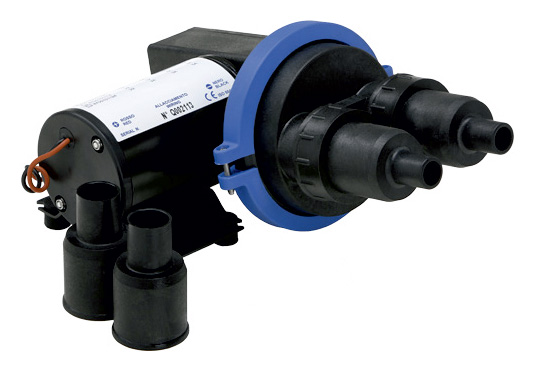

DIAPHRAGM PUMP
0.00฿
Super Compact Diaphragm
12V/ 24V
The new modern diaphragm pump that can be set up in several applications and with different pump motor configurations.It is easy to install as a bilge pump in any leisure craft or anywhere after the drain outlet in the waste water system or directly in the Matromarine waste water tank . No filters required, the pump can run dry, and also can handle a mixture of air and water without difficulty. Perfect for installation in tight spaces, the SUPERCOMPACT diaphragm pump can be incorporated into a small boat bilge space. Available in version with double 19 mm port connection and 25 mm port connection. Equipped with straight port connections.
Out of stock
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Features:
- New compact and simple design
- Flexible installation
- No filter required
- Can run dry.
- Can pump air/water mixture
- Low power consumption
- Quiet operation
- Mets ISO 8846 EN5514 Standards
- 360 rotational pump body
- Non-return valve.
Diaphragm Pump 12V/ 24V
| Code | 11-00278 | 11-00279 |
| Volt | 12 | 24 |
| Amp | 1,5 | 2,5 |
| Flow/Min | 22 | 22 |
| Flow 1,5 Mt/Min | 15 | 15 |
| Hose Connection (mm) | 1-25 Grey | 1-25 Grey |
| Dimension | 190x245x125 | 190x245x125 |
